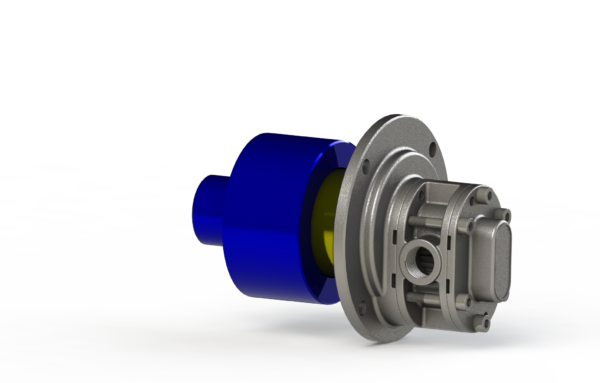

HBBV series features
The HBBV series magnetic gear metering pump adopts a magnetic drive friction plate structure. It is characterized by providing a completely sealed magnetic drive structure. It has the obvious advantages of zero leakage and maintenance-free in highly toxic, explosive and corrosive environments. The housing adopts a precision casting structure.
Performance parameter
Pressure:<30Bar（According to fluid viscosity）
Speed:<1000r/min
Viscosity:<10000Cps
Temperature: -18-200’C
Common materials
Pump casing material: 304，316L,2507
Axis material: 440C,2205，2507
Sealing: mechanical seal, packing seal
D-type sleeve material: 440C, Cr12, graphite, silicon carbide
Static sealing: fluororubber, perfluoroether, perfluorotetrafluoro
Typical applications
Hydrochloric acid, Dimethyl ether, Ether,
Formaldehyde, Liquefied gas transportation,
Flammable and explosive fluids such as
Gasoline and benzene

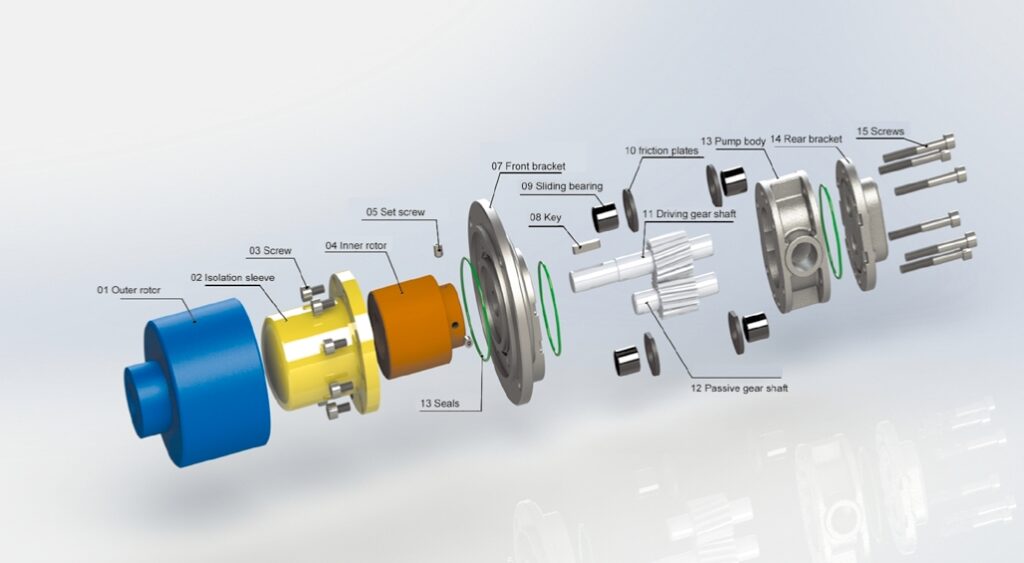

Typical Structure of HBBV Series
