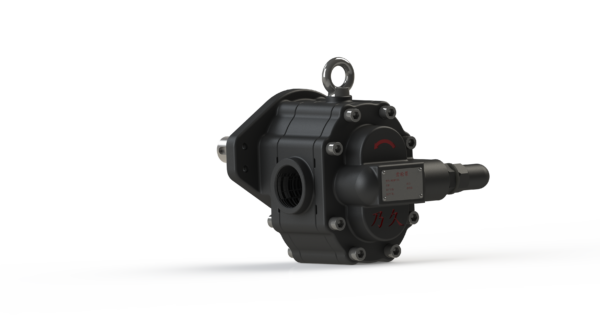

Characteristics of HZB series
The qualified HZB series gear pumps are general-purpose external gear pumps, circular arc gear pumps, and gear oil pumps. They have good fluid compatibility and excellent performance in conveying non-corrosive fluids. A key feature is the use of friction plates on the gear sides and self-lubricating bearings internally, resulting in good performance in lubricated media.
Performance parameter
Pressure:<30Bar（According to fluid viscosity）
Speed:<1450r/min
Viscosity:<10000Cps
Temperature: 0-90℃C
Common materials
Pump casing materials: QT400, QT500,QT600, HT200
Axis material: 20CrMoTi,38CrMoAl, 440C, high chromium
wear-resistant steel
Seals:mechanical seals, packing seals, magnetic seals, andplug seals
Static sealing: fluororubber, perfluoroether, PTFE coated, perflu-orinated
Typical applications
Crude oil ,Lubricating oil,Hydraulic oil,Mechanical oil,Butter,Polyurethane,Isocyanate,Epoxy resin,Stearic acid,Rosin,MDI

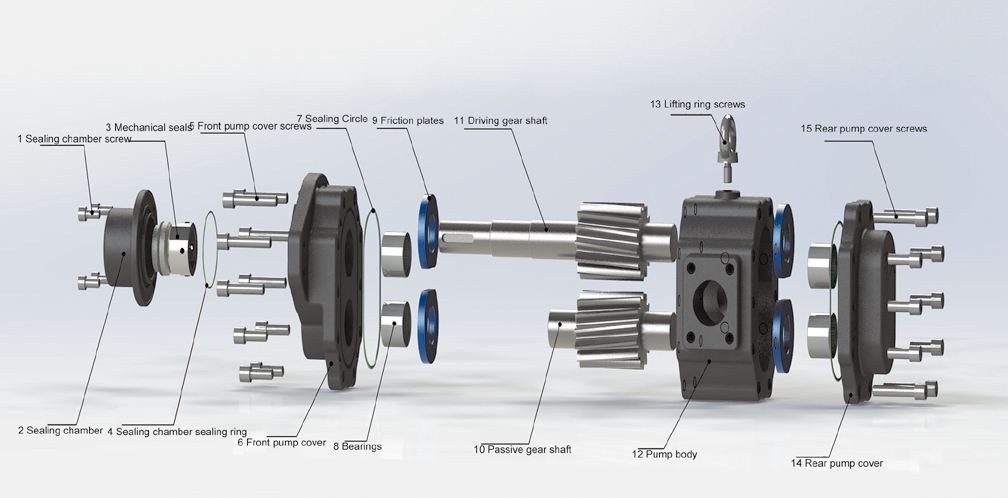

Typical Structure of HZB Series
