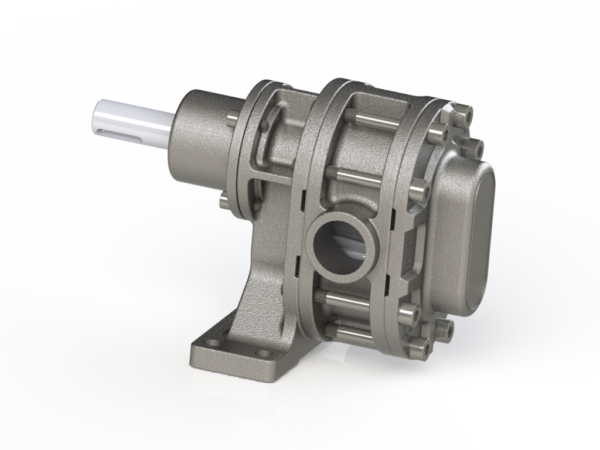

Precision HBB gear metering pump are corrosion resistant

The HBB helical gear metering pump is a precision-cast, general-purpose pump with excellent fluid compatibility and superior performance in a wide range of fluid environments. Its defining feature is the friction plate structure on the gear flanks, which achieves metering accuracy of 1‰ under ideal operating conditions. Internal bearings utilize corrosion-resistant sliding bearings, ensuring excellent performance and low noise levels even in environments with relatively poor lubricity.

HBB Series features
The HBB series helical gear metering pump is a precision-cast, general-purpose pump with excellent fluid compatibility and superior performance in a wide range of fluid environments. Its defining feature is the friction plate structure on the gear flanks, which achieves metering accuracy of 1‰ under ideal operating conditions. Internal bearings utilize corrosion-resistant sliding bearings, ensuring excellent performance and low noise levels even in environments with relatively poor lubricity.

Performance parameter
pressure:<30Bar（According to fluid viscosity）
speed:<1000r/min
viscosity:<10000Cps
temperature:0-90°C

Common materials
Pump casing material:304,316L,2205，2507,QT400

Axis material:440C，2205，2507

seal:Mechanical seal, packing seal

Static sealing:Fluorine rubber, perfluoroether, PTFE coated,perfluorinated

Typical applications of series
Resin,Grinding aids,Water reducing agentspapermaking auxiliaries,Dyes,Filling machines.Honey,Butter

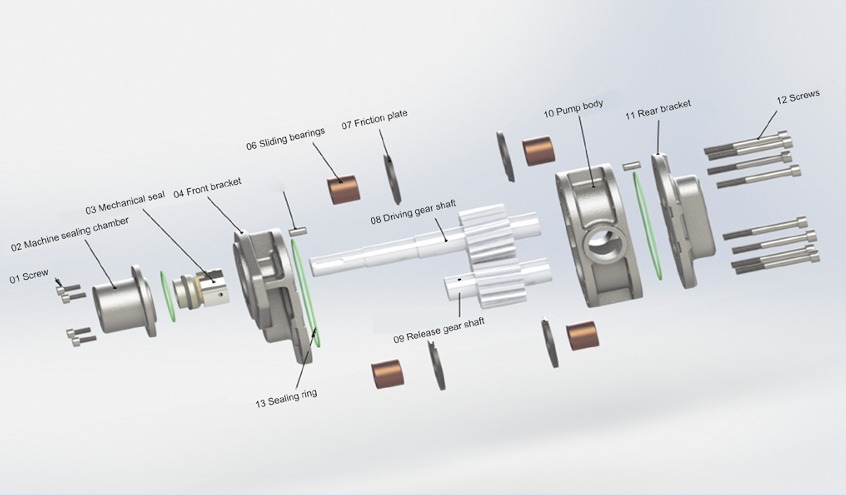

HBB Typical structure of the series
