Product introduction

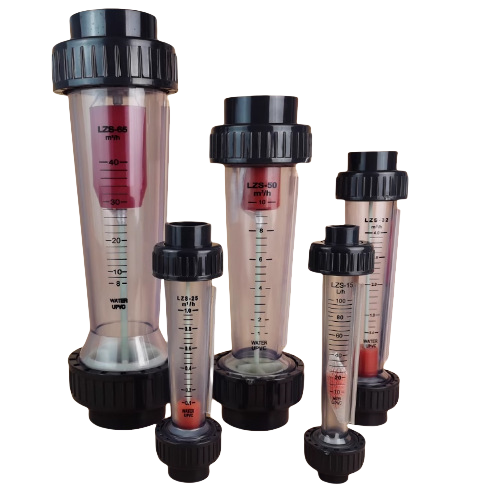

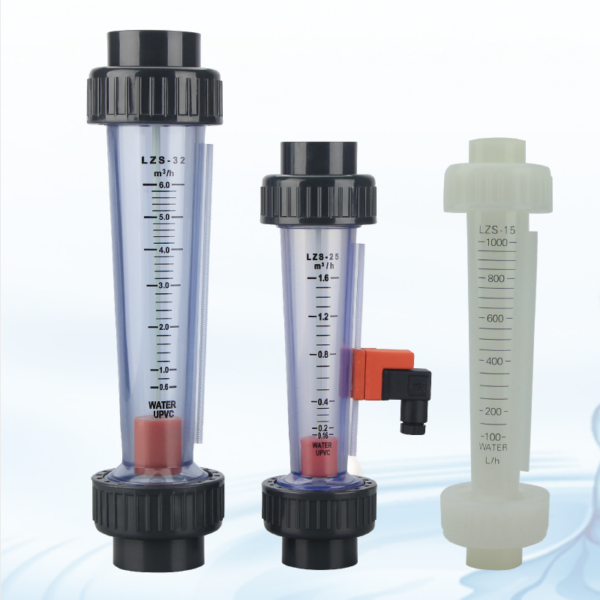

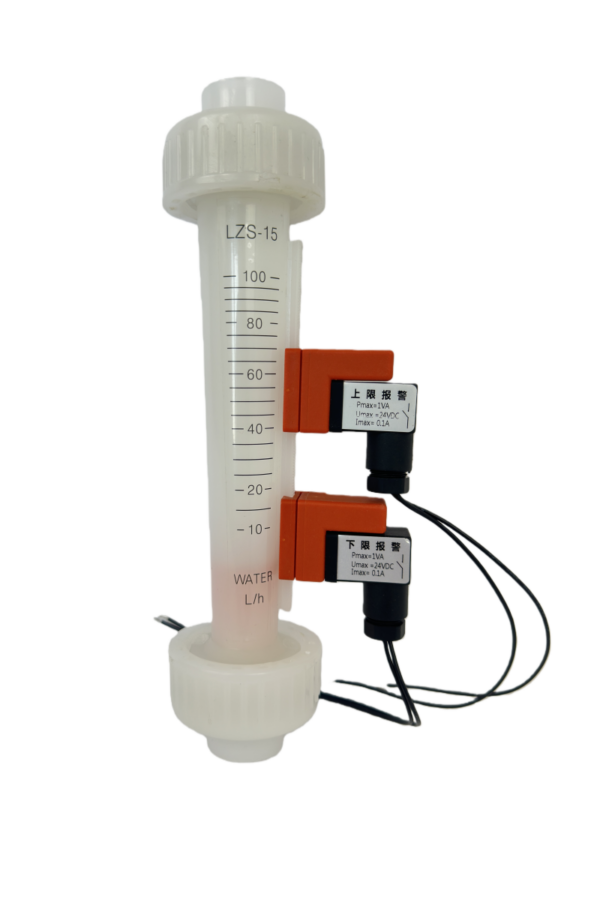

Plastic tube flow meters, available in PVC and PVDF, are primarily used to measure the instantaneous and cumulative flow of liquids or gases in pipelines. They are widely used in chemical, water treatment, semiconductor, food, and pharmaceutical industries, where special requirements exist for corrosion resistance, cleanliness, or cost control. They are inexpensive and have a simple structure. They can be integrated with upper and lower limit electronic flow alarm switches to achieve intelligent flow pipeline control.
Selection method
Select the flow meter material, range, and diameter based on the flow rate, medium, and orifice size. It should be noted that the largest orifice size currently available for PVDF float flow meters is DN25.

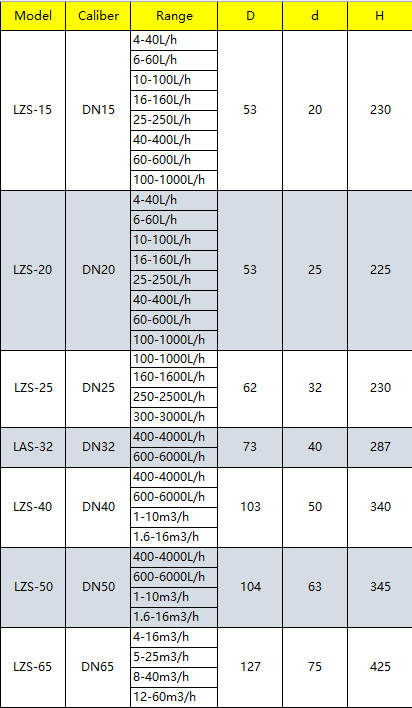

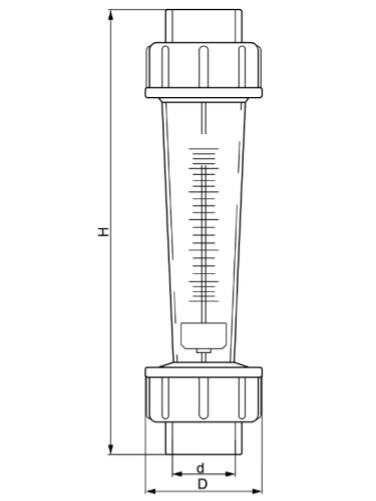

Unit：mm
