The venturi jet injector, also known as a water jet injector, consists of four parts: a nozzle, a suction chamber, a diffuser, and a one-way valve. It is an automatic aeration and dosing element developed using the principle of jet negative pressure. Its unique mixing chamber design creates a powerful jet of water mixed with gas (or liquid chemicals). It provides balanced aeration and dosing, high efficiency, a compact structure, quick installation, and good corrosion resistance.
Plastic jet injectors are widely used in water treatment, agricultural irrigation, ozone generators, chlorination disinfection equipment, chemical industry, aquaculture, and other industries.

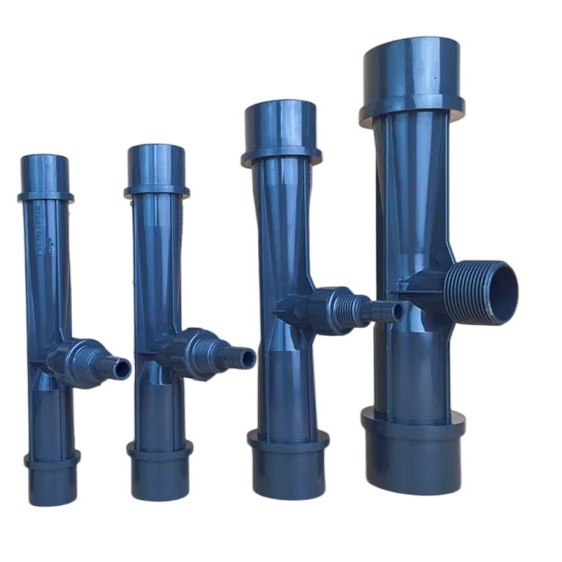

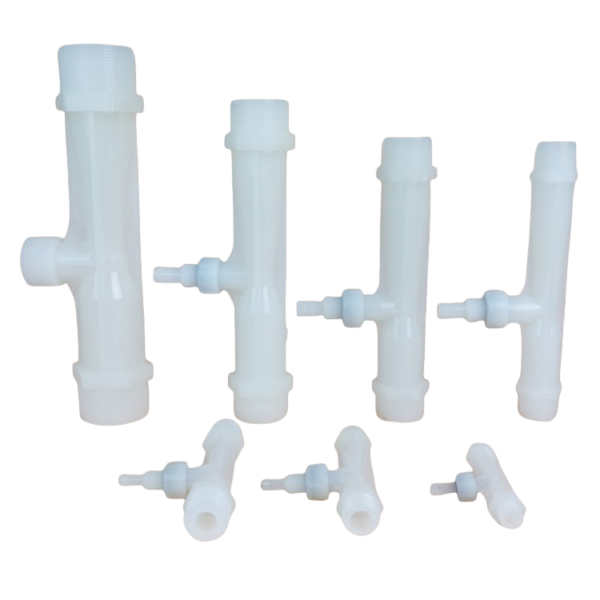

Materials: UPVC, PP, PVDF.
