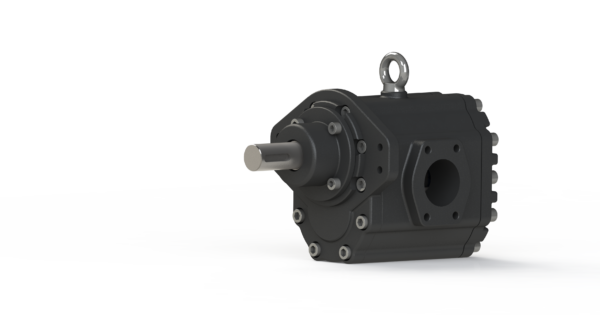

High-load HZS gear pump circular arc gear pump

HZS gear pump are cast iron double row bearing series, which are characterized by providing greater radial support under high load and high wear conditions, and reducing shaft wear, which has significant advantages under abrasive working conditions.

Characteristics of HZS series
The stable HZS series gear pumps utilize double-row bearings, providing greater radial support for high-load and high-wear conditions, and reducing shaft wear, offering significant advantages in abrasive environments. Circular arc gear pump, Helical gear pump

Performance parameter
Pressure:<30Bar（According to fluid viscosity）
Speed:<1450r/min
Viscosity:<30000 Cps
Temperature: 0-90*C

Common materials
Pump casing materials: QT400, QT500, QT600,HT200Axis material: 20CrMoTi, 38CrMoAl, 440C, high chromiumwear-resistant steel
Seals: mechanical seals, packing seals, magnetic seals, andplug seals
D-type sleeve material: 440C,Cr12, graphite, silicon carbideStatic sealing: fluororubber, perfluoroether, perfluorotetrafluoro

Typical applications
Water glass, Paint, Coal tar, Polyurethane withfillers, Silicone sealant with fillers

Typical Structureof HZS Series
