Model: DN15~DN80
Operating Current: 60mA Max
Rated Voltage: 3.5~30VDC

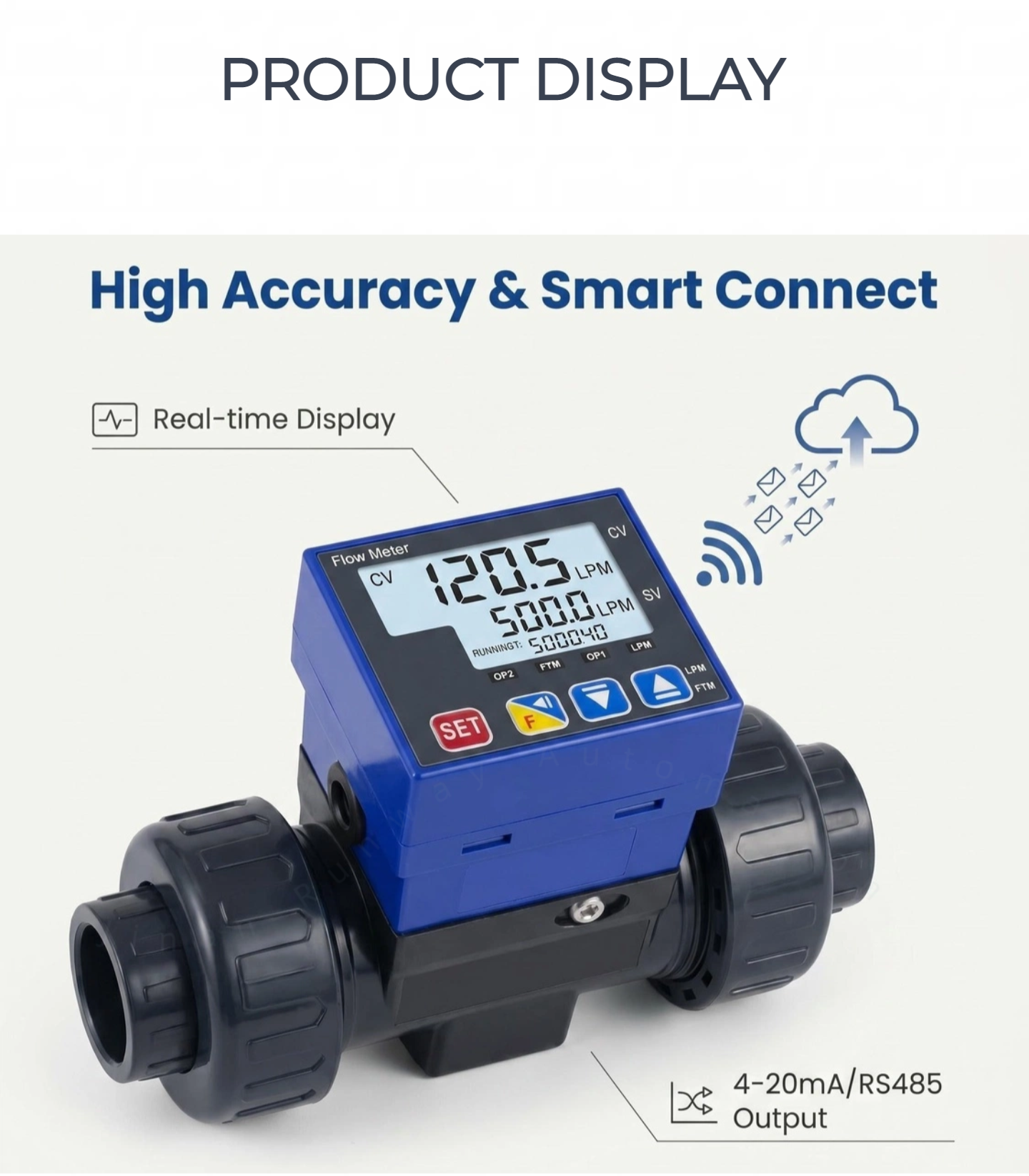

Instantaneous Flow Meter Settable Range (LPM): 0~999.9
Total Flow Meter Settable Range (FTM): 0~999999
Instantaneous Flow Control Output Method: NPN (150mA Max)
Total Flow Control Output Method: NPN (150mA Max)
Measuring Fluid Medium: Water or Chemical Liquid
Maximum Flow Velocity: 10m/s max
Minimum Flow Velocity: 0.3m/s min
Operating Pressure: 10kg/cm²
Response Time: Real-time
Ambient Temperature: -10℃~70℃
Protection Class: IP65
